VSI Product Family
OEM-Level Access, Built for Independent Shops

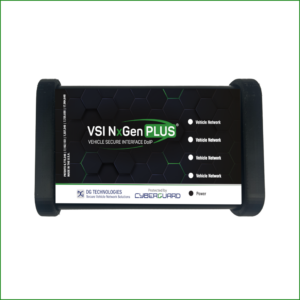

Unlock OEM-level diagnostics, ECU programming, ADAS calibration and vehicle security access with the VSI NxGen PLUS. Built fully SAE J2534-1/-2 compliant and validated by DG’s AVT tools, this pass-thru device leverages right-to-repair legislation to put dealership-grade power directly into the hands of independent technicians.
Advanced
Compatible
Secure
Proven
OEM-Level Access, Built for Independent Shops
Innovation-driven Solutions
VSI NxGen PLUS is DG’s next-generation scan tool, built to diagnose and reprogram vehicles from 1996 through 2027 and beyond. It has been tested and approved by more original equipment manufacturers than any tool on the market, and it adds diagnostics over internet protocol (DoIP), giving faster, more reliable access to today’s Ethernet-based vehicle networks. Work on the oldest OBD-II vehicle in the shop this morning and an electric vehicle platform by the afternoon, with the same tool.
The VSI NxGen is DG’s SAE J2534-1/-2 compliant pass-thru device, built for electronic control unit programming, advanced driver assistance systems calibration and vehicle security access. With right-to-repair legislation opening OE-level diagnostics to independent shops, the VSI NxGen gives technicians the same programming and security access dealerships have always had, validated by DG’s own Advanced Validation Tool (AVT).
Dealer-level module programming and vehicle security access.
Supports ADAS calibration, key programming and ECU updates.
Backed by automatic software and firmware updates, always.
What each offers
Get the same dealer-level diagnostics, programming and security access independent shops were once locked out of.
FOUNDATIONAL AND OVERLAP
SAE J2534 API Compliance (v04.04, v05.00)
Legacy Vehicle Diagnostics and Reprogramming (1996–2020)
Legacy CAN and Serial Support (ISO 15765, J1850 PWM/VPW, ISO 9141, KWP2000, SCI)
CAN FD (Flexible Data-Rate) and FT-CAN Capability
DG Diagnostics (DGD) and Utilities Software Included
Hardware Enclosure / Form Factor (DB25 to OBD-II and USB)
DISPARATE AND MODERN ARCHITECTURES
DoIP (Diagnostics over Internet Protocol – ISO 13400)
Dedicated Ethernet Port (RJ45 / Physical DoIP Layer)
Support for Modern EV Platforms and High-Speed Ethernet Architecture.
Full Compatibility with 2021–2027 plus Late-Model Vehicles
⚠️ (Limited/Legacy CAN)
All-New DGD PRO Advanced Diagnostic Suite
CyberGuard Integrated Firmware Protection
⚠️️ (Standard Firmware)
Which VSI NxGen Diagnostic Tool Is Right for Your Shop?
Why Choose the Standard VSI NxGen?
Best For: General repair shops, independent technicians and locksmiths primarily servicing pre-2021 gas and diesel vehicles.
Core Focus: Essential J2534 pass-thru reflashing, standard module programming and reliable daily OBD-II diagnostics.
Why Choose It? Maximum Value: If your workload centers on domestic and Asian vehicles using standard CAN protocols (GM, Ford, Toyota, Stellantis) and you don’t require high-speed Ethernet routing, the standard NxGen gives you OEM-level reprogramming power without paying for high-bandwidth hardware you won’t use.
Why Choose the VSI NxGen PLUS?
Best For: Advanced diagnostic specialists, high-volume collision repair centers, mobile programmers and shops handling modern European vehicles or EVs.
Core Focus: Next-generation DoIP communications, ADAS calibrations and late-model vehicle networks.
Why Choose It? Complete Coverage and High Speed: Modern platforms from BMW, Mercedes-Benz, Land Rover, Volvo and EV manufacturers like Rivian demand high-bandwidth DoIP Ethernet support to reflash modules or run factory diagnostics like VW/Audi ODIS or Benz XENTRY. The PLUS enables you to service a 2002 domestic car in the morning and a 2027 EV platform in the afternoon with zero limitations.
VSI NxGen PLUS: Dealer-level access, without the dealership.
FEATURES
- DoIP
- SAE J2534 API (v04.04, v05.00)
- PC-based, OEM-level diagnostics
- Pre- and post-repair scans
- DG Diagnostics (DGD) software Included. Supports multiple industrial and automotive protocols: SAE J2534 (pass thru) / DoIP (ISO 13400-2) / ISO 15765 (CAN) / ISO 14230 (KWP2000) / ISO 14229 / ISO 9141 / MSCAN / J1850 PWM (Ford SCP) / J1850 VPWM (GM Class 2, Chrysler) / CAN (ISO 11898, J2284) / GM LAN (HSCAN, SWCAN) / FT CAN / CAN FD / SAE J2610 (Chrysler SCI)
BENEFITS
- Professional automotive diagnostic scan tool for modern vehicles
- Enables OEM software use through J2534
- Faster diagnostics using DoIP vehicle networks
- Secure Firmware Solution included to securely update your products seamlessly
- Backed by reliable, U.S.-based technical support
OEM CAPABILITY
Works with leading OEM and component diagnostic and reprogramming applications including, but not limited to: Audi, BMW ISTA, Ford FDRS/FJDS, GM Tech2Win, GM GDGS2, Honda, Mercedes, Nissan, Stellantis, Toyota, Rivian, Volkswagen, Hyundai, Jaguar, Subaru, Mazda, Isuzu
Key Features
OEM-Level Access
Gain access to the same programming and security tools that previously were only in the hands of dealerships, so you can perform ADAS calibrations, key programming and module programming without turning a job away.
Verified Connection
Every session runs through DG’s own built-in validation tools, so you can trust the reading in front of you and stop guessing whether the adapter itself is the problem.
Multi-Protocol Coverage
Communicates across every major vehicle network protocol, from CAN and CAN FD to J1850 and KWP2000, so you can move from an older OBD-II vehicle to a modern platform without swapping tools.
Secure Connection
Every session runs over a protected PC-to-vehicle link, so your diagnostic data and vehicle communication stay guarded from the moment you plug in.
